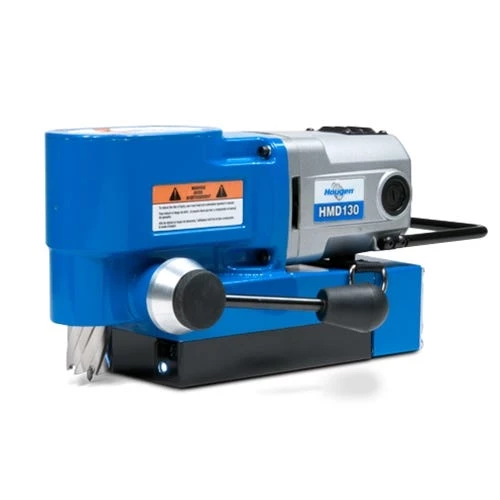

Hougen HMD130 Ultra Low Profile 1-3/8″ Magnetic Drill 0130101

Hougen

HMD130 Ultra Low Profile 1-3/8″ Magnetic Drill 0130101

Ultra Low Profile lightweight right angle drill with large capacity. Uses RotaLoc Plus annular cutters which requires no tools for installation or removal.

Features:

• Lightweight at only 23.8 lbs (10.8kg).
• Patented quill feed arbor for smooth cuts and minimal maintenance.
• Pilot light.
• Positive slug ejection.
• High torque gearing.
• Lift detector safety system.
• Feed handle switches easily from side to side.
• Ratchet can be used in place of feed handle.
• Rear mounted controls.
• Carrying handle.
• Carrying Case included.
• Two year warranty.

Specifications:

Electrical System	115V, 50/60 Hz – 9A, 1035W 230V, 50/60 Hz – 4.5A, 1035W
Motor	8A (120V), 4A (240V) 450 RPM
Diameter	7/16″- 1-3/8″ (12mm – 35mm)
Depth	1″ (25mm)
Cutter/Mount	RotaLoc Plus Cutters with push & turn style shank
Dimensions	6-15/32″ H x 6-3/4″ W x 14-11/16″ L (164mm H x 171mm W x 373mm L)
Magnet	Base: 4″ W x 9″ L (102mm W x 229mm L) 1″ Plate (25mm): Dead Lift 2165 lb. (982 kg) / Drillpoint Breakaway 735 lb. (333 kg) 3/8″ Plate (9.5mm): 1200 lb. (544 kg) / 500 lb. (227 kg)
Weight	23.8 lb. (10.8 kg) • Shipping 31.7 lb (14.4 kg)
Shipping Dimensions	19.5″ x 17″ x 8″ (49.5 x 43.1 x 22.9 cm)



Includes:

(1) HMD130 Ultra Low Profile 1-3/8″ Magnetic Drill (0130101)

(1) Carrying Case

(1) Slick-Stik Lubricant

(1) Safety Strap
