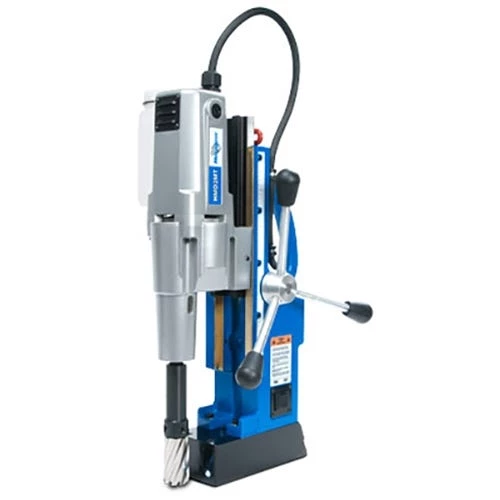

Hougen HMD2MT Portable Magnetic Drill 1-5/8″ #2 Morse Taper 0200102

Original price was: $408.00.Current price is: $91.99.

SKU: Hougen Tools HOU0200102 Category: Hougen Mag Drill Presses

Secure Payments, Secure Shopping
Buy with Peace of Mind
7 days free returns
Streamlined service, designed for your convenience.

Hougen

Morse Taper Magnetic Drill 0200102

FEATURES:

Large 1-5/8 x 2″ capacity
Powerful high torque Hougen motor and gears
Two Speed gear box – 250 & 450 RPM
Forward and reverse switch for tapping
Double dovetail slide for a stroke up to 7″
Pilot light
Two stage magnet – 30% increase in power when

motor is turned on

Gravity fed coolant bottle
Many accessories are available for a

portable machine shop including: drill chucks; tapping; countersink; and more…

Feed handles quickly change from side to side
Lift detector safety system
Rear mounted controls
Carrying case included
One year warranty

SPECIFICATIONS:

Electrical System	115V; 50/60 Hz – 10A; 1150W
Electrical System	230V; 50/60 Hz – 5A; 1150W
Motor	9A (115V); 4.5A (230V); 250/450 RPM
Diameter	9/16″- 1-5/8″ (14mm – 41mm)
Depth	2″ (50mm)
Cutter/Mount	Morse Taper 2 in12;000-Seriesin & Copperhead & Fusion cutters; 3/4″ shank
Twist Drill Capacity	3/4″ w/ 2MT shank
Reamer Capacity	3/4″ w/ 2MT shank
Tapping Capacity	5/8″ w/ 2MT shank
Dimensions	22-5/16″ H x 7-1/2″ W x 12-3/4″ L
Dimensions	(567mm H x 191mm W x 324mm L)
Magnet	Base	3-1/2″ W x 7-3/4″ L (89mm W x 197mm L)
	1″ Plate (25mm)	Dead Lift 2385 lb. (1082 kg)	Drillpoint Breakaway 1290 lb. (585 kg)
	3/8″ Plate (9.5mm)	15 lb. (742 kg)	825 lb. (374 kg)
Weight	40 lb. (18.1 kg) Shipping 57 lb (25.9 kg)
Shipping Dimensions	20 x 9.25 x 28.25″ (50.8 x 23.5 x 71.8 cm)
