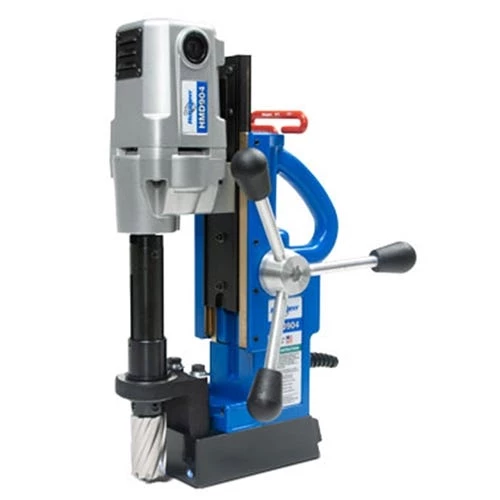

Hougen HMD904 Portable Magnetic Drill 1-1/2″ Single Speed 0904101

Hougen

HMD904 Portable Magnetic Drill 1-1/2″ Single Speed 0904101

The mag drill of choice for fabrication. Lightweight, compact, powerful, & versatile.

Features:

• Large 1-1/2″ x 2″ capacity.
•  NEW – Hidden motor cord.
• NEW – Ergonomic housing.
• NOW – Increased safety with less maintenance.
• NEW – Height – 1-5/8″ shorter.

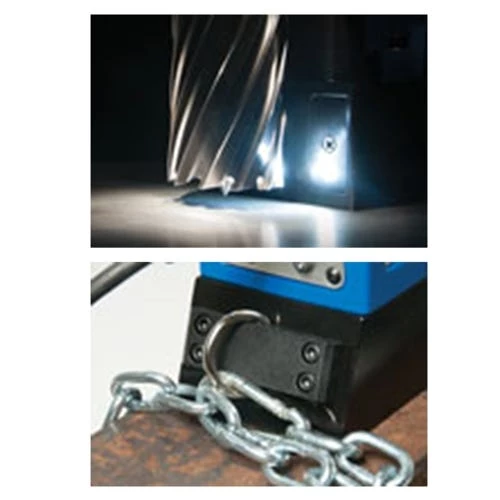

• Pilot Light.
• Two stage magnet – 30% power increase when motor is turned on.
• Positive slug ejection.

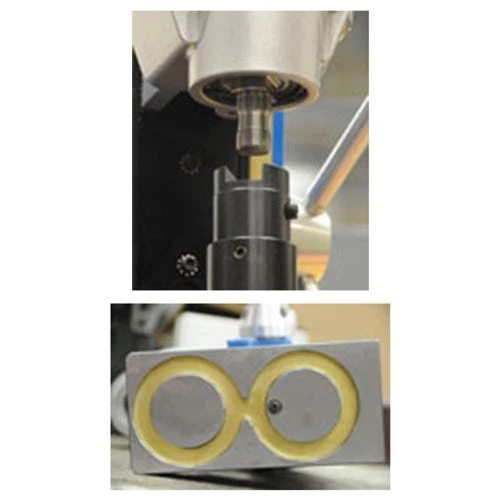

• Slot Drive arbor for more accuracy and quicker change out of accessories.
• Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more…
• Feed handles quickly change from side to side.
• Lift detector safety system.
• Rear mounted controls.
• Gravity feed coolant system (HMD904 w/ coolant bottle).
• NEW – Carrying case included (09202).
• Two year warranty.

Specifications:

Electrical System	115V, 50/60 Hz – 9A, 1035W 230V, 50/60 Hz – 4.5A, 1035W
Motor	8A (115V), 4 (230V), 450 RPM
Diameter	7/16″- 1-1/2″ (12mm – 38mm)
Depth	2″ (50mm)
Cutter/Mount	“12,000-Series” & Copperhead Carbide cutters, 3/4″ shank
Dimensions	18″ H x 7-3/4″ W x 11-5/8″ L (457mm H x 197mm W x 295mm L)
Magnet	Base: 3-1/8″ W x 6-9/16″ L (79mm W x 167mm L) 1″ Plate (25mm): Dead Lift 1750 lb. (794 kg) / Drillpoint Breakaway 995 lb. (452 kg) 3/8″ Plate (9.5mm): 1310 lb. (594 kg) / 710 lb. (322 kg)
Weight	30 lb. (13.6 kg) • Shipping 44.1 lb (20 kg)
Shipping Dimensions	18″ x 20″ x 9″ (45.72 x 50.8 x 22.9 cm)



Includes:

• HMD904 Portable Magnetic Drill 1-1/2″ Single Speed (0904101)
• Carrying Case
• Pint of Coolant
• Saftey Chain
• Hex Wrenches
