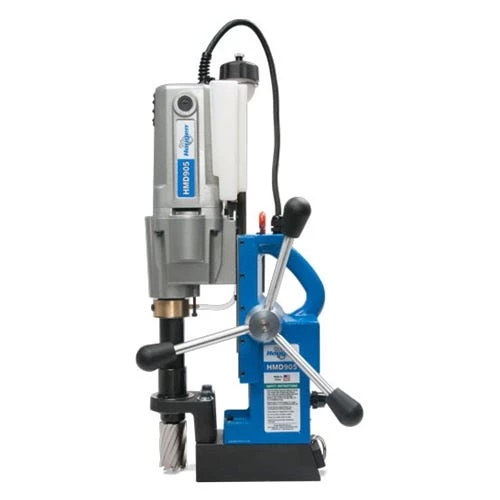

Hougen HMD905 Portable Magnetic Drill 1-5/8″ Two Speed 0905102

Hougen

Portable Magnetic Drill 1-5/8 Two Speed 0905102

FEATURES:

• Larger Motor with two speeds adds increased strength and versatility

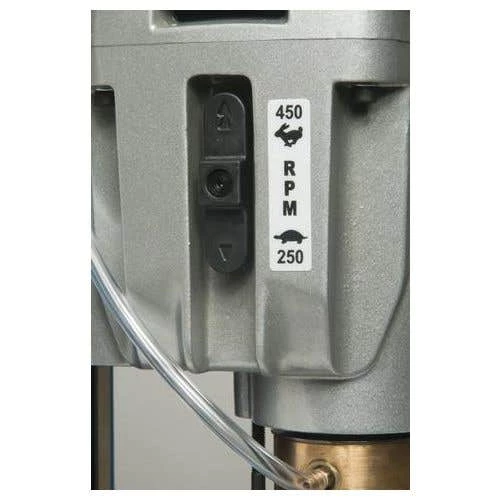

• Two speed gear box – 250 and 450 RPM
• Can work with twist drill bits – Requires Slot Adapter 08186 & 1/2″ Chuck 10731

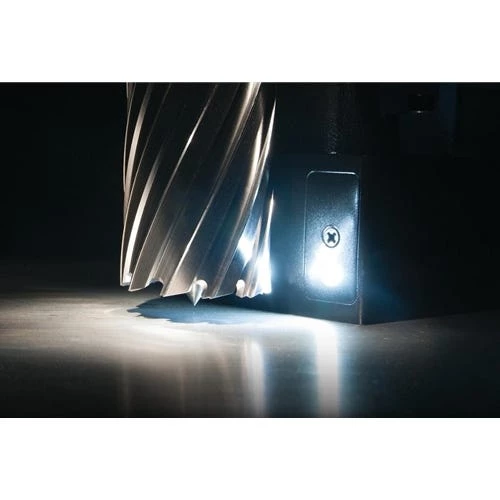

• Pilot light for low light conditions and greater hole accuracy

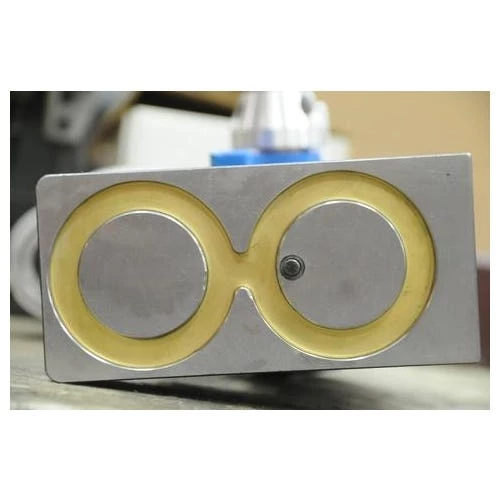

• Two stage magnet: engages full power when motor is turned on
• Available with or without the swivel base

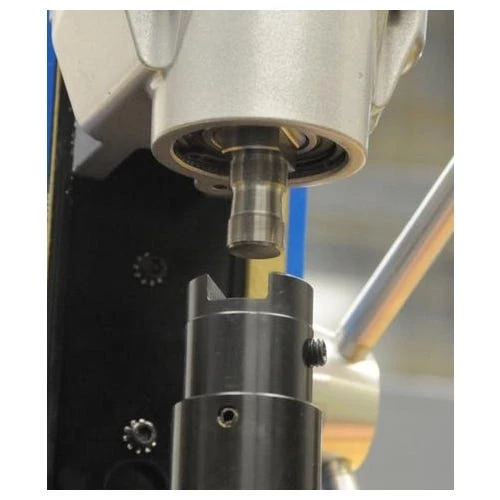

• Positive slug ejection
• Many accessories are available to turn your drill into a portable machine shop; including drill chucks; tapping; countersink; and more
• Lift detector safety system

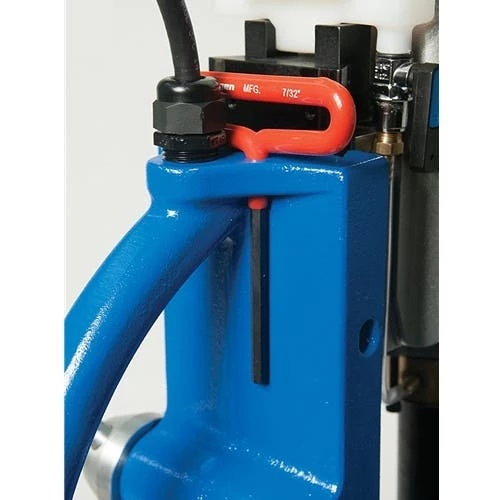

• Integrated gravity fed coolant bottle
• Carrying case included
• One Year warranty
• 9A; 115V; 250/450 RPM Motor
• 7/16″ – 1-5/8″ hole diameter; 2″ depth of cut
• 3/4″ cutter mount
• 1/2″ twist drill capacity with drill chuck
• 1/2″ tapping capacity with tapping unit
• 22-13/16″ H x 7-11/16″ W x 11-3/4″ L
• 3-1/8″ W x 7-11/16″ L base
• 1750 lbs. dead lift on 1″ Plate; 1310 lbs. on 3/8″ plate
• 35 lbs.
• Large 2″ x 2″ capacity
• Powerful high torque Hougen motor and gears
• Two Speed gear box – 250 & 450 RPM
• Pilot light
• Two stage magnet – 30% increase in power when motor is turned on
• Positive slug ejection
• Integrated coolant bottle
• Many accessories are available for a portable machine shop including: drill chucks; tapping; countersink; and more…
• Feed handles quickly change from side to side
• Lift detector safety system
• Rear mounted controls
• Carrying case included
• Two year warranty

SPECIFICATIONS:

rowspan=”3″>

Electrical System	115V; 50/60 Hz – 10A; 1150W
	230V; 50/60 Hz – 5A; 1150W
Motor	9A (115V); 4.5A (230V); 250/450 RPM
Diameter	7/16″- 2″ (12mm – 50mm)
Depth	2″ (50mm)
Cutter/Mount	in12;000-Seriesin & Copperhead & Fusion cutters; 3/4″ shank
Dimensions	22-13/16″ H x 7-11/16″ W x 11-3/4″ L
	(579mm H x 195mm W x 299mm L)
Swivel Area	1-1/8″ W x 1-3/8″ L
	(28.5mm H x 34.9mm W)
Magnet	Base	3-1/8″ W x 6-9/16″ L (79mm W x 167mm L)
	1″ Plate (25mm)	Dead Lift 1750 lb. (794 kg)	Drillpoint Breakaway 995 lb. (452 kg)
	3/8″ Plate (9.5mm)	1310 lb. (594 kg)	710 lb. (322 kg)
Magnet (Swivel)	1″ Plate (25mm)	Dead Lift 1340 lb. (608 kg)	Drillpoint Breakaway For. 695 lb. (315 kg) Back 835 lb. (379 kg)
	3/8″ Plate (9.5mm)	1015 lb. (460 kg)	For. 503 lb. (228 kg) Back 605 (274 kg)
Weight	35 lb. (15.9 kg) Shipping 52 lb (23.6 kg)
Weight (Swivel)	38 lb. (17.2 kg) Shipping 55 lb (24.9 kg)
Shipping Dimensions	20 x 9.25 x 28.25″ (50.8 x 23.5 x 71.8 cm)

“
