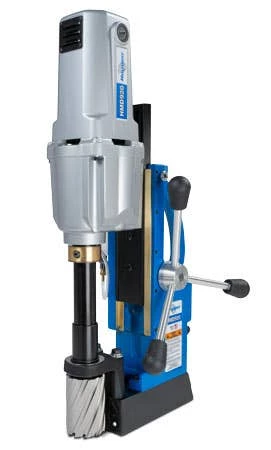

Hougen HMD920 Mag Drill – Swivel Fab Kit Fractional – 115V 0920109

Hougen

HMD920 Mag Drill – Swivel Fab Kit Fractional – 115V 0920109

Hougen’s most powerful three speed mag drill for heavy duty fabrication. The HMD920 replaces the HMD917.

FEATURES:

• Large 2-3/8″ x 3″ capacity.

• Our most powerful high torque motor.

• Three speed gear box – 250 / 450 / 700 RPM.

• Pilot light.

• Two stage magnet – 30% increase in power when motor is turned on.

• Positive slug ejection.

• Gravity fed coolant bottle.

• Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more.

• Feed handles quickly change from side to side.

• Lift detector safety system.

• Rear mounted controls.

• Two year warranty.

Swivel Base adds even greater versatility:

• Precisely line up your pilot with the holes center location.

• One stroke lock and unlock handle.

• Great for horizontal, overhead, tight areas, and getting out over another piece of steel.

• Patented.

SPECIFICATIONS:

Electrical System	115V, 50/60 Hz – 13.5A, 1553W; 230V, 50/60 Hz – 6.75A, 1553W
Motor	12.5A (115V), 6.25A (230V), 250/450/700 RPM
Diameter	7/16″- 2-3/8″ (12mm – 60mm)
Depth	3″ (76mm)
Cutter/Mount	“12,000-Series” & Copperhead™ Carbide cutters, 3/4″ shank
Dimensions	25-15/16″ H x 8-3/16″ W x 12-13/16″ L (659mm H x 208mm W x 325mm L)
Swivel Area	1-1/8″ W x 1-3/8″ L (28.5mm H x 34.9mm W)
Magnet	Base: 3-1/2″ W x 7-3/4″ L (89mm W x 197mm L) 1″ Plate (25mm): Dead Lift 2385 lb. (1082 kg); Drillpoint Breakaway 1290 lb. (585 kg) 3/8″ Plate (9.5mm): Dead Lift 1635 lb. (742 kg); Drillpoint Breakaway 825 lb. (374 kg)
Magnet (Swivel)	1″ Plate (25mm): Dead Lift 2480 lb. (1125 kg); Drillpoint Breakaway For. 1043 lb. (473 kg) Back 1218 lb. (552 kg) 3/8″ Plate (9.5mm): Dead Lift 1782 lb. (808 kg); Drillpoint Breakaway For. 796 lb. (361kg) Back 1067 lb. (484 kg)
Weight	49 lb. (22.2 kg) • Shipping 66 lb (29.9 kg)
Weight (Swivel)	53 lb. (24.1 kg) • Shipping 70 lb (31.8 kg)
Shipping Dimensions	20 x 9.25 x 28.25″ (50.8 x 23.5 x 71.8 cm)



INCLUDES:

(1) Pint of coolant

(1) Safety chain

(2) Hex wrenches

(1) 1/2″ Drill Chuck

(1) Adapter

(1) “12,000-Series” Cutter Kit
