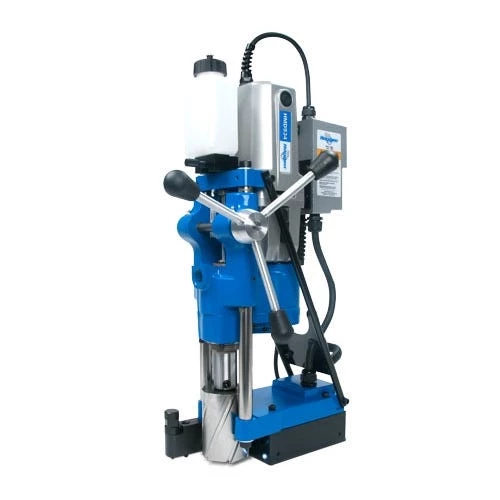

Hougen HMD934 Portable Magnetic Drill 3-1/16″ Industrial Four Speed 0934102

Original price was: $563.00.Current price is: $98.99.

SKU: Hougen Tools HOU0934102 Category: Hougen Mag Drill Presses

Secure Payments, Secure Shopping
Buy with Peace of Mind
7 days free returns
Streamlined service, designed for your convenience.

Hougen

Portable Magnetic Drill 3-1/16 Industrial Four Speed 0934102

FEATURES:

Powerful motor with two speed gear box
Interchangeable gears for up to four speeds
Uses Hougen in12;000-Seriesin Annular Cutters
Pilot light
Two stage magnet
Positive slug ejection
Coolant bottle included – optional pressurized system
More holding power with impactor points
Lift detector safety system
Minimal maintenance requirements
Integrated motor/gearbox design with guide rails for a rigid compact design
Two year warranty

SPECIFICATIONS:

Electrical System	115V; 50/60 Hz – 13.5A; 1553W
Electrical System	230V; 50/60 Hz – 6.75A; 1553W
Motor	12.5A (115V); 6.25A (230V) 70/120/200/332 RPM
Diameter	5/8″- 3-1/16″ (16mm – 77mm)
Depth	4″ (100mm)
Cutter/Mount	in12;000-Seriesin – 3/4″ shank
Dimensions	26-1/4″ H x 10″ W x 17-3/4″ L
Dimensions	(667mm H x 254mm W x 451mm L)
Magnet	Base	5″ W x 7″ L (127mm W x 178mm L)
	1″ Plate (25mm)	Dead Lift 2745 lb. (1245 kg)	Drillpoint Breakaway 1492 lb. (676 kg)
	3/8″ Plate (9.5mm)	1153 lb. (522 kg)	627 lb. (284 kg)
Weight	72 lb. (32.6 kg) Shipping 94 lb (42.6 kg)
Shipping Dimensions	15.75 x 22 x 32.25″ (40 x 55.9 x 81.9 cm)
